Data Acquisition
Home › PRODUCT › Data Acquisition
NEX-DAQ

어떤 환경에도 흔들리지 않는, 작지만 '강력한' 신제품



"Rugged and Compact"



    > Sampling rate : 24-bit, 200 kS/s or 1 MS/s per channel

    > Accuracy :  ±0.05 % of reading, ±0.02 % of range ±50 µV

    > Analog input : 8 inputs for voltage up to ±100 V and full/half bridge,

                                 TEDS and MSI support

    > CAN-bus : 2 interfaces for CAN2.0 and CAN-FD

    > Counters, digital I/O  : 4 advanced counters and 8 basic counters/digital inputs,

                                               4 digital outputs

    > Power supply : 9 to 36 V


WATERPROOF

IP 67 보호등급, 방수기능

FANLESS

무소음으로, 측정신뢰도 상승

-20 °C TO +70 °C

확장된 작동 온도범위로 측정환경 제한 감소

  • Power Supply Options
  • Higher Channel Counts
“

APPLICATIONS

Maintenance service and troubleshooting
NVH/sound testing
Thermal management testing of E-Vehicles
Vehicle Power consumption road test
Aerospace engine field
Material strength testing with strain gauges

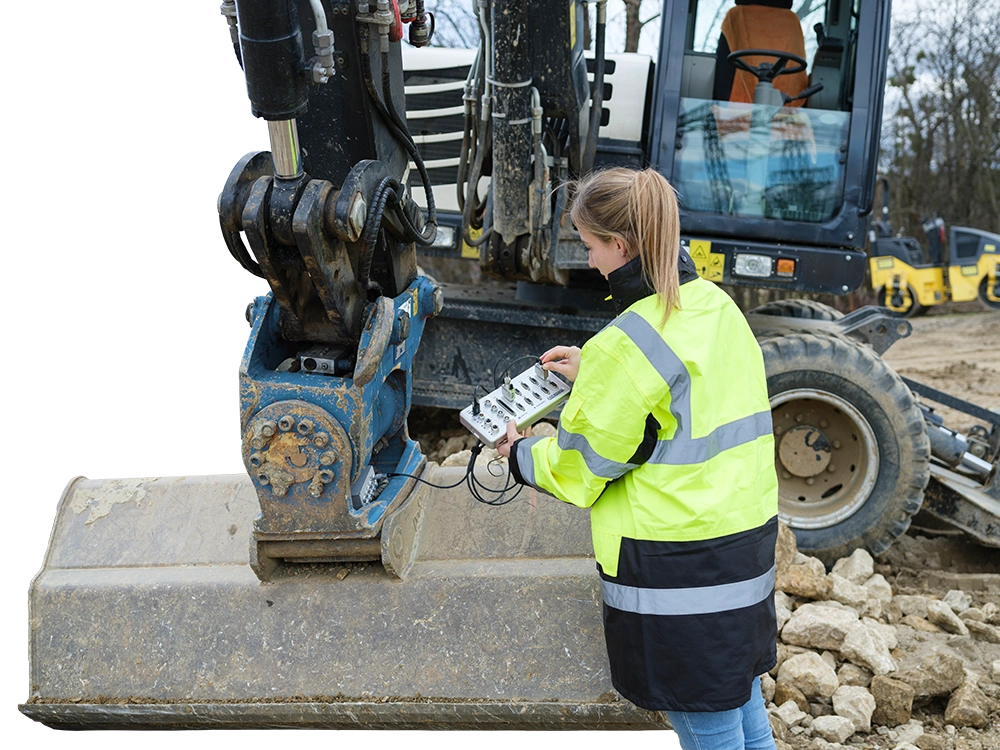

Machinery diagnostics

”
MAINFRAME system

컴팩트하면서, 최대 128개의 아날로그 채널을 처리할 수 있는 견고한 DAQ시스템

MODELDEWE3-M4DEWE3-M8s

Slots for TRION / TRION3 modules

4 slots / TRION38 slots / TRION3
High speed channel expansionadd TRIONet or oxygen-NETadd TRIONet or oxygen-NET
Data storage

1TB SSD dedicated for data storage 256GB SSD

for operating system and application SW

1TB SSD dedicated for data storage 512GB SSD
for operating system and application SW

Optional data storage

Up to 2 TBUp to 2 TB
Gapless storing rateTyp. 400 MB/sTyp. 800 MB/s
Input voltage10 to 36 VDC isolated; incl. external AC power supply

10 to 36 VDC isolated; incl. external AC power supply;

optional battery powered; 2 separate power inputs
for mutual power supply backup

Battery Operationsyesn/a

Dimensions

( W x D x H)

318 x 253 x 108 mm
339 x 281 x 239 mm (4 u)
Rack Mount

랙에 장착가능한 DAQ 시스템

유지보수가 용이한 무음 냉각 기능 및 표준 PC 구성요소로 업그레이드 가능






                Key facts


                                > Rack-mount or benchtop data acquisition mainframe

                                  > 4/8/12/16 slots for TRION3/TRION acquisition series modules

                                  > Silent cooling, easy to maintain fan cartridge

                                  > Optional 10 GBit Dual LAN high speed channel expansion

                                  > Gapless storage of raw data up to 1GB/s





TRION MODULE

각 채널의 A/D변환 기능과 anti-aliasing 필터링이가능한 트리온 모듈

Enjoy maximum flexibility with these user-  exchangeable modules featuring A/D

conversion on each channel and anti-aliasing

filters.

     ANALOG MODULES












    POWER MODULES







    DIGITAL MODULES





Front-END system
All-in-One system
