Data Acquisition
Home › PRODUCT › Data Acquisition > All-in-one systems
All-in-ONE system
with built in display






    "Compact and Flexible configuration"


    "Convenient for mobile applications with built-in display"


    "Powerful PC inside for fast online display and analysis"

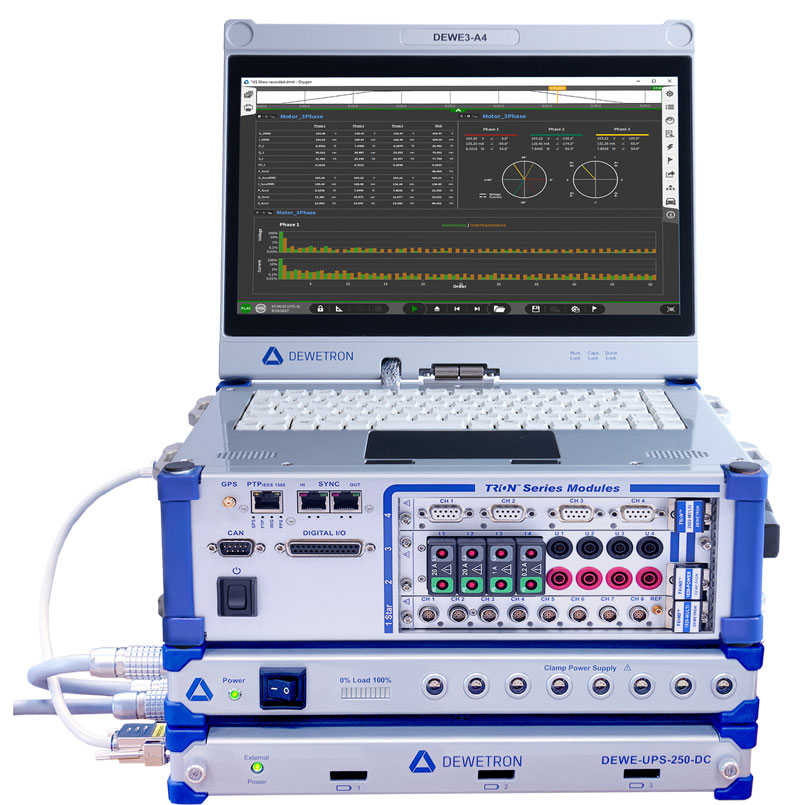

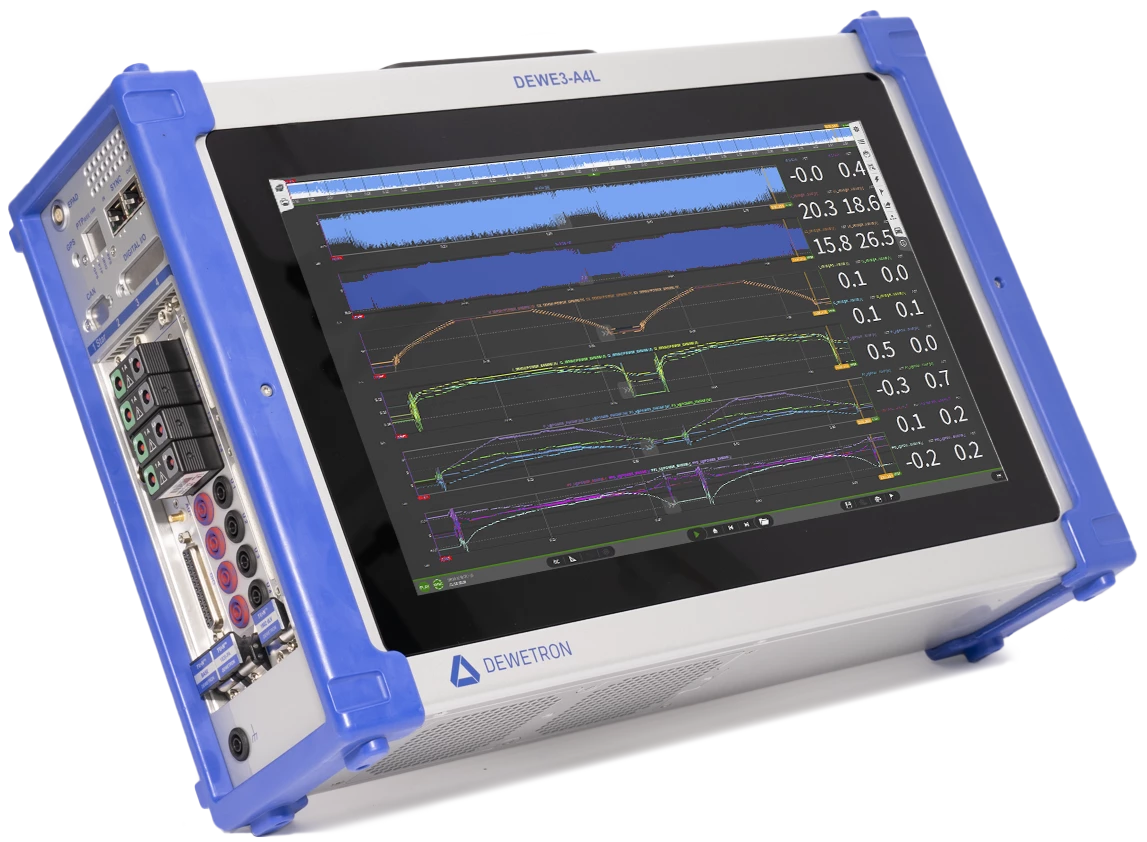

MODELDEWE3-A4DEWE3-A4L

Slots for TRION / TRION3 modules

4 slots / TRION34 slots / TRION3
High speed channel expansionadd TRIONet or oxygen-NETadd TRIONet or oxygen-NET
Data storage

1TB SSD (Optional 2TB) dedicated for data storage

256GB SSD for operating system and application SW

1TB SSD (Optional 2TB) dedicated for data storage
256GB SSD for operating system and application SW
Gapless storing rateTyp. 400 MB/sTyp. 400 MB/s
Display 13“ TFT multi-touch, Full HD15.4“ multi-touch wide-screen display, Full HD
Input voltage10 to 36 VDC isolated incl. external AC power supply

90 to 264 VAC

Battery Operationsyes-

Dimensions( W x D x H)

Weight

318 x 253 x 128mm

(5.9kg)

462 x 320 x 135 mm

(8.5kg)
